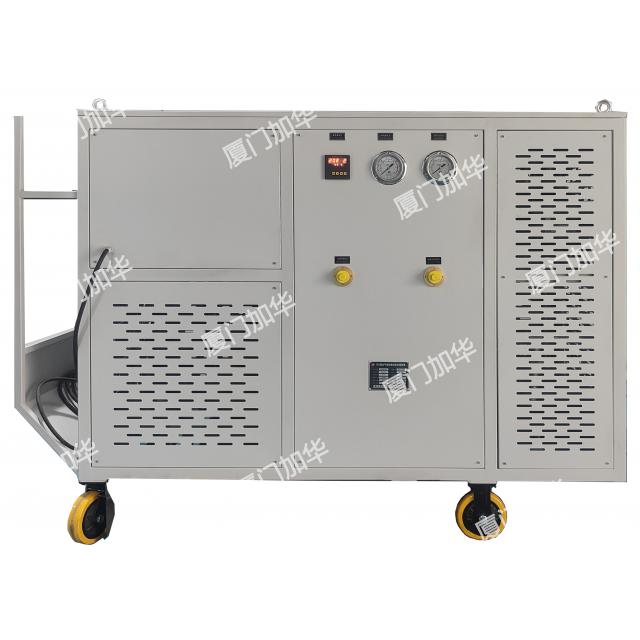

JHHS-30B SF6 gas recovery and recharge purification and purification treatment device

???

recommendation index：

Regenerative molecular sieve filtration technology

Low temperature refrigeration cycle purification and purification technology, the purity of SF6 afte

Negative pressure recovery, real-time measurement of residual pressure in the air chamber of electri

Intelligent design with Internet of Things capabilities

Devices for rapid recovery, purification, recharge, purification, and canning of SF₆ gas

project	Specifications
SF6 comprehensive detector (built-in)	Decomposition components SO₂, H₂S, CO, HF, CF₄, purity, humidity detection function
SF6 exhaust gas detection (built-in)	Detection sensitivity	≤ 1μL / L repeated
	measurement error	≤±5%
Compressor (without oil)	inlet pressure	≤ 0.8MPa
	outlet pressure	≥5.0MPa
	recovery speed	≥ 30 m³/h
	Lubrication method	graphite lubrication
Vacuum compressor	recovery rate	≥ 31m³/h
	ultimate vacuum	≤100Pa
Vacuum unit	type	Solenoid valve with anti-return oil.
	Vacuum speed	≥250m³/h
	ultimate vacuum	≤10Pa
	Vacuum pump	Pumping rate ≥ 100m³/h
	Roots pump	Pumping rate ≥ 250m³/h
	Equipped with a digital vacuum meter to monitor the vacuum level
Refrigeration unit	cooling rate		≥ 150 kg/h
	Cooling temperature		≤-35℃
inflation speed	inflation pressure	0~ 1.0MPa (adjustable)
	inflation speed	≥ 50m³/h
